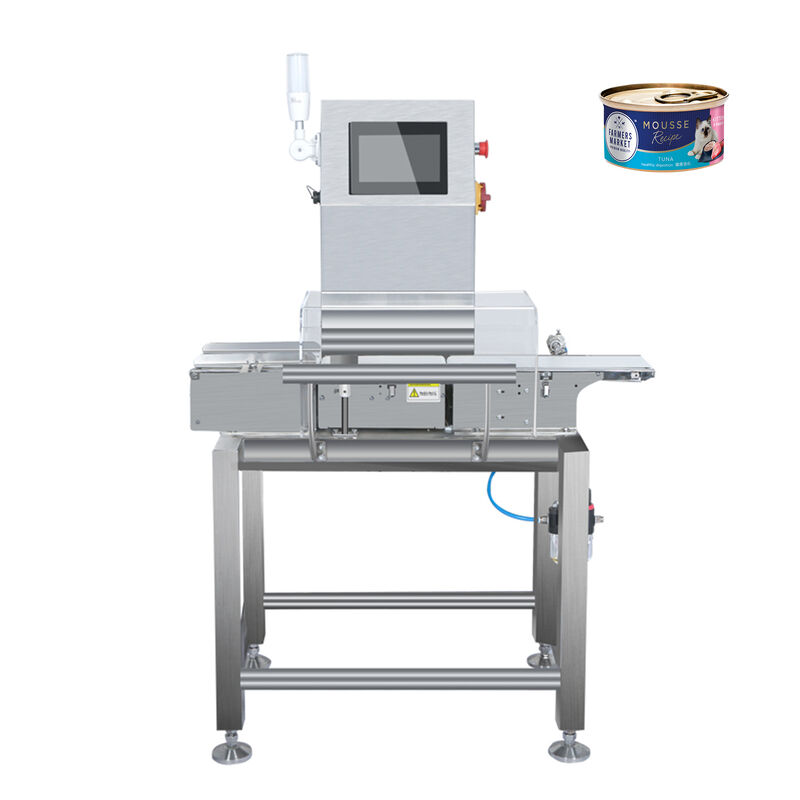

Weighing Packing 0.1g Accuracy Reject Function Conveyor belt Checkweigher weighting machine

Name: Weighing Packing 0.1g Accuracy Reject Function Conveyor belt Checkweigher weighting machine
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: Sacw500
Price: 4,400.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: SHANAN

Sertifikasi: ce

Nomor model: Sacw500

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:

Suhu Operasional:	0-40℃	Catu daya:	AC 220V/50Hz
Kisaran Penimbangan:	Disesuaikan	Bahan sabuk:	PVC atau PU Food Grade
Cara penyortiran:	Muti Sorting	Alarm:	Cahaya dan suara
Menampilkan:	D	Selama:	100 ~ 700 pcs/mnt

Suhu Operasional:	0-40℃
Catu daya:	AC 220V/50Hz
Kisaran Penimbangan:	Disesuaikan
Bahan sabuk:	PVC atau PU Food Grade
Cara penyortiran:	Muti Sorting
Alarm:	Cahaya dan suara
Menampilkan:	D
Selama:	100 ~ 700 pcs/mnt

Weighing Packing 0.1g Accuracy Reject Function Conveyor belt Checkweigher weighting machine

Large Throughput Checkweigher Scale , Automated Sorting System CE And ISO

What is a check weigher?

A metal detector check weigher incorporates two parts, metal detector and check weighter. Checkweighers are known also as belt weighters in-motion scales, conveyor scales, dynamic scales, and in-line scales. A checkweigher make sure that every product leaving the production line is the right weight. They are key to ensuring that manufacturers provide quality products to improve customer satisfaction.

If you need to ensure products are within a certain weight range and free of metal contaminants, our checkweighers and metal detectors are sure to provide an ideal solution. Our range includes a variety of metal detectors for sale, in addition to quality check weighter that provide accurate, high-precision measurements. If you’re looking to buy a metal dertctor for food processing and inspection.

Our check weigher standard features:

Strong stainless steel structure ensure stable performance and precise weighing;
Color digital LED touch screen, more stability and easier to operate;
Self-diagnosis function, when Rom/Ram, A/D light electric tube.
Based on advanced digital weighing unit;
Belt disassembling without tools, which is easier to clean
Reject system : arm, air blast or pneumatic pusher for selecting;
Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications;

Scope of application :

Food
Chemicals
Beverages
Automotive
Cosmetics
Transport/logistics
Pharmaceuticals
Metal manufacture and fabrication industries

Parameter details :

Model Name	VC-10	VC-15	VC-22	VC-30	VC-40	VC-25(two belt)	VC-100
Weight range (g)	3-100	3-300	10-1200	30-3000	50-1000	50g-25kg	1kg-100kg
Mini weight accuracy (g)	±0.1	±0.3	±0.5	±1	±0.5	±5g	±10g
Mini screen value (g)	0.01	0.1	0.1	0.1	0.1	0.5	1g
Max weigh speed (Bags /Minute )	20	330	210	180	180	50	20
Belt speed	0	16-118	13-96	13-96	13-96	13-78	3-15
(Meter/minute )	0	16-118	13-96	13-96	13-96	13-78	3-15
Suitable product length (mm)	-	60-180mm	60-300mm	60-420mm	60-500mm	60-420mm	-
Suitable product width (mm)	-	30-150mm	30-200mm	30-250mm	30-400mm	30-380mm	-
Suitable product height (mm)	-	10-130mm	10-200mm	10-330mm	10-330mm	10-430mm	-
*Weigh zone size (mm LW)**	-	*270110**	*400220**	*500300**	*500400**	*800600**	*1000800**
Note	Non-standard (without belt)	High accuracy	Small common model	Customized model	Customized model	Common model for Box	Roller end belt
Reject device optional	Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional )

Product model	SACW-120A	Transfer speed	20~60m/min
Power supply	AC220V土10% 50HZ (60HZ)	Maximum speed	180 pcs/min
Rated power	0.15KW	Weighing conveyorbelt size	250mm(L)“120mm (W)
Single weighing range	1.5-200g	Elimination method	Blow-out
Weighing accuracy range	土0.05g~土0.1g	Control System	High speed A/Dsampling controller
Minimum scale	0.01g	Preset product number	2000pcs
Inspection item size	Length: 30-150mm Width: 30~90mm Height:10-100mm
size Machine	900mm (L)500mm(W)1250mm (H)
Operation direction	Facing the machine, left to right
External air supply	0.6-1Mpa
Air pressure interface	Φ8mm
Workingenvironment	Temperature:0C~40C,Humidity:30%~95%
Body material	Stainless steel 304 polished
Operationscreen display	Chinese, English, Turkish, Spanish, etc.
Other standardequipment	Windshield (colorless and transparent), calibration weight
Height of beltsurface from ground	650mm~~750mm(can be customized)
Protection level	Protection level conforms to IP-55 international standard
Remarks	According to the different dimensions of the tested product andthe working environment in which the equipment is running, the accuracyof the speedometer is slightly different
